Product Description
Welcome Visit us~

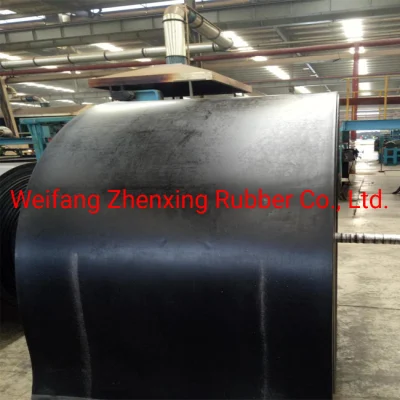

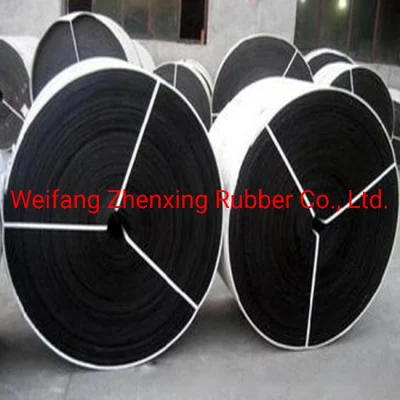

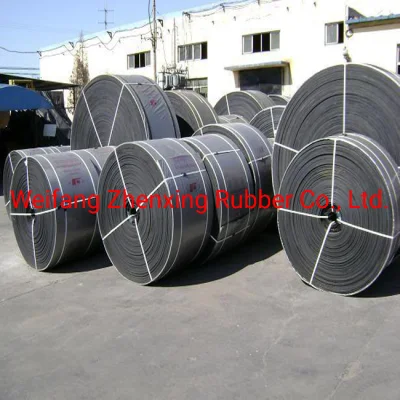

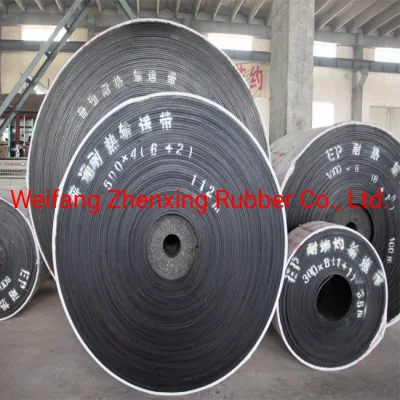

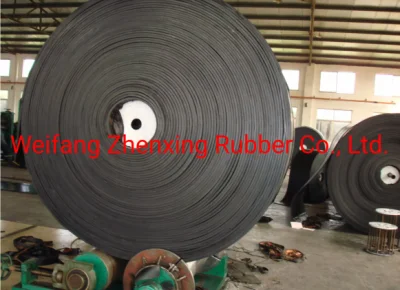

EP Rubber Conveyor Belt
Characteristics:
No joint in belt carcass , long life span ,with flat surface and even tension, runs smoothly with low elongation
Plies: 2 to 12
Belt width: 300 to 1,600mm
Cover rubber thickness:
Top: 1.5 to 12mm
Bottom: 1.5 to 10mm
Tensile strength: 10 to 25MPa
Usage:
Suitable for conveying materials in normal temperatures for various non-corrosive pointless lumps, granular or powders such as coal, coke, sand and cement in bulk or packaged
Specifications of multi-layers EP fabric carcass endless flat rubber belt/circular conveyor belt.
1.Model: N/mm(Tensile Strength)
Type :680S,800S,1000S,1250S,1400S,1600S,1800S
| Tensile Strength(N/mm) | |||||||||||||
| Type | 680S | 800S | 1000S | 1250S | 1400S | 1600S | 1800S | 2000S | 2240S | 2500S | 2800S | 3100S | 3400S |
| Longitudinal≥ | 680 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | 2000 | 2240 | 2500 | 2800 | 3100 | 3400 |
| Transveres≥ | 265 | 280 | 300 | 350 | 400 | 450 | |||||||
Type | Full Thickness Belt Tensile Strength N/mm | Full Belt Elongation At Break%(not less than) | Belt wide mm | Length Per Roll M | ||
| Longitudinal | Transverse | Longitudinal | Transverse | 650----1400 | 200 | |
| 580S | 580 | 245 | 15 | 18 | ||
| 680S | 680 | 265 | ||||
| 800S | 800 | 280 | ||||
| 1000S | 1000 | 300 | ||||
| 1250S | 1250 | 350 | ||||
| 1400S | 1400 | 350 | ||||
| 1600S | 1600 | |||||
| 1800S | 1800 | |||||
| 2000S | 2000 | |||||
| 2240S | 2240 | |||||
| 2500S | 2500 | |||||
2. Flame Retardancy
(2) Blowtorch combustion: the average time for full-thickness specimen to blowtorch without flame shall not be greater than 3.0s, and the average time for covering layer removal shall not be greater than 5.0S
(3) Propane combustion: Nondestructive length greater than 2250mm
| Table of Structure and Performance | |||
| Structure and Performance | Domestic Conven Solid Woven Belts | International Conventional Solid Woven Belts | SWR Solid Woven Fire Resistance Belts |
| Carcass | NN/EE+CC | NN/EE+CC | NN/EE/EP/KF |
| Cover | PVC/PVG+RUBBER | PVC/PVG+RUBBER | High Polymer+RUBBER |
| Abrasion(mm3) | 200 | 200 | 150 |
| Tensile Strength(Mpa) | 15 | 15 | 20 |
| Elongation(%) | 350 | 350 | 400 |
| Cover Thickness(mm) | 5+3 | 4+2 | 12 |
| Troughability | Fair | Good | Excellent |
| Pulley Diameter | Big | Medium | Small |
| Production Process | Carcass PVC Plasticizer | Carcass PVC Plasticizer | High Ploymer&Namo-Bonding System |
| Life | 1 year | 1.5 years | 5 years |
3. Safety Performance
The conveyor belt has passed the flame retardant test and electrostatic test and obtained the certificate, coal safety mark, and customer recognition.
This product is made of an integral belt core as skeleton material, which is plasticized after impregnating and coating PVC material with excellent antistatic and flame retardant properties.
| Safety performance | |
| Surface resistance average | ≤3×10^8Ω ≤3×10^8Ω |
| Drum friction property | The temperature is no more than 325ºC and shall not appear as flame or no fire burning. |
| Alcohol blast burner burning test | With cover: Average≤ 3S, individual ≤ 10S Without cover: Average≤ 5S, individual ≤ 15S |
(1) The dense belt core is woven from warp and weft filaments and covered cotton;
(2) Impregnated with PVC material with a special formula to achieve high bonding strength between belt core and cover glue;
(3) Specially formulated cover glue; So as to make the belt body resistant to impact, tear and wear.
The flame retardant conveyor belt has excellent mechanical properties, which can provide users with the longest service life and economic installation and use.
6. Product Structure
The flame retardant conveyor belt adopts the integral belt core as the skeleton material, which is plasticized after impregnating and coating PVC materials with excellent antistatic and flame retardant properties. click the picture
(1)Q: Are you a factory or trading company?
A: We are a factory with an export license. We have the most convenient transportation conditions.
(2)Q: Do you offer samples?
A: We are glad to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for the order.
(3)Q: How about the lead time?
A: Within10-20 days after getting the prepayment or L/C.
(4)Q: How can we pay?
A: For a small sample shipping costs, you can pay either by PayPal or by T/T. And by T/T or L/C at sight for a large amount of the order.
(5)Q: Can you do CO, Form E, Form F, Form A, etc?
A: Yes, we can do them for you.
(6)Q: What is your factory's main product?
| No. | Rubber Conveyor Belt |
| 1 | Conveyor Belt for General Purpose |
| 1.1 | EP(polyester) Conveyor Belt: EP100,EP125,EP150,EP200,EP250,EP300,EP400,EP500,EP630 |
| 1.2 | NN(Nylon) Conveyor Belt : NN100,NN125,NN150,NN200,NN250,NN300,NN400,NN500,NN630 |
| 1.3 | Cotton Conveyor Belt: CC-56 CC70 |
| 1.4 | Steel Cord Conveyor Belt: ST630,ST800,ST1000,ST1250,ST1600,ST2000,ST2500,ST3150,ST4000,ST4500,ST5000, ST5400 |
| 2 | Conveyor Belt for Special Purpose |
| 2.1 | Heat Resistant Conveyor Belt |
| 2.2 | High-Temperature Conveyor Belt |
| 2.3 | Fire Retardant Conveyor Belt |
| 2.4 | Cold Resistant Conveyor Belt |
| 2.5 | Oil Resistant Conveyor Belt |
| 2.6 | Chemical Resistant Conveyor Belt |
| 3 | Chevron (PaConveyor Belt |
| 4 | Bucket Elevator Conveyor Belt |
| 5 | Sidewall Conveyor Belt |
| 6 | Flat Transmission Belt |
