Basic Info.
Delivery Time
25-30 Days
Raw Material
Toner, Silicon Powder
Application
Industrial Ceramic,Refractory,Industrial Furnaces
Size
as Customer Need
Usage
Anti- Strong Acid and Alkali
Density
More Than 3.02 g/cm3
Thermal Conductivity
45 (1200 Celsius)
Moh′s Hardness
9.15
Vickers Hardness Hv
20 Gpa
Open porosity
Less than 0.1%
Acid alkaline proof
Excellent
Transport Package
Wooden Case with Soft Foam
Specification
According to order quantity
Trademark
BD / Customized
Origin
Weifang, China
HS Code
6903900000
Production Capacity
5000 PCS/Month
Product Description

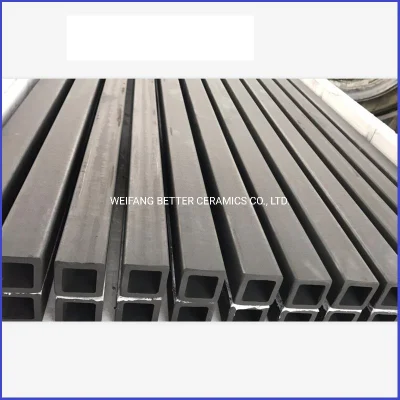

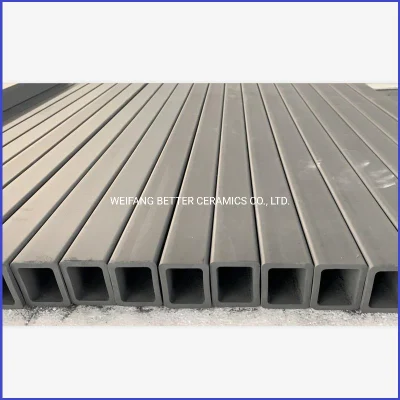

Sintering Silicon Carbide Ceramic Tubes Kiln Furnitures Sisic/Rbsic Beams Square Beams Maximum Operating Temperature 1380 degrees
Packaging & Delivery
1. Export safe wooden box
2. Inner boxes with filler.
3. Out package is high quality cartons.
4. Custom package
5. Within 5 days after getting the full payment.
Our company profile:
Weifang Better Ceramics co., LTD is a professional production of Reaction Sintered Silicon Carbide (RBSiC) Or Silincon Infiltrated Silicon Carbide (SiSiC) ceramics enterprises,Our company is located in gaomi city located in the jiaodong peninsula and shandong inland junction,in the west of tourist city of Qingdao, the esst to the world kite city of weifang, the territory of convenient transportation, convenient railway highway from Qingdao airport only 40 minutes, we warmly welcome new and old customers to plant inspection.
BETTER'S RBSiC(SiSiC) products have stable performance and excellent quality, Our company has passed ISO9001 quality system certification. RBSiC(SiSiC) Product has high strength, high hardness, high temperature resistance, wear resistance, corrosion resistance, oxidation resistance, thermal shock resistance, good thermal shock resistance, good thermal conductivity, high thermal efficiency, etc. Our Products are widely applied in power plant desulfurization dust removal equipment, high temperature ceramic kiln, steel quenching furnace, mine material grading cyclone, etc., RBSiC(SiSiC) product categories include Desulfurization spray nozzle, RBSiC(SiSiC) burner nozzles, RBSiC(SiSiC) radiation pipe, RBSiC(SiSiC) heat exchanger, RBSiC(SiSiC) beams, RBSiC(SiSiC) rollers, RBSic(SiSiC) lining ect.
We always believe that high quality products and sincere service is the only guarantee maintain customers long-term cooperation with me.
Our team:
We are a professional team.Our members have many years of silicon carbide technology and research.
We are a young team.We are full of youthful spirit and innovative spirit.
We are a dedicated team.We firmly believe that the best brand name comes from the trust of the customers.Only focus, will make better products.
We are a dream team.We came from different place but as a common dream: to be a really good silicon carbide production manufacturer.
Effective team members for the team to show high levels of loyalty and commitment, intended to allow a group to be successful, we are willing to do anything."We put the loyalty and dedication, called consistent commitment.
FAQ:
Q: Are you trading company or manufacturer ?
A:We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods need production, it is according to quantity.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge but the freight cost is yours.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.

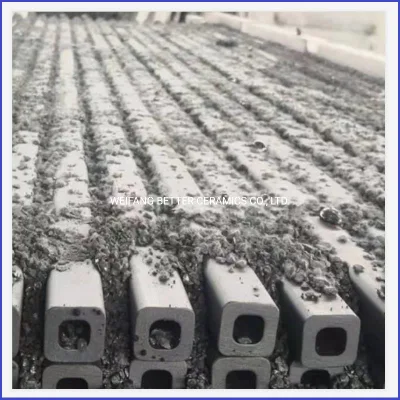

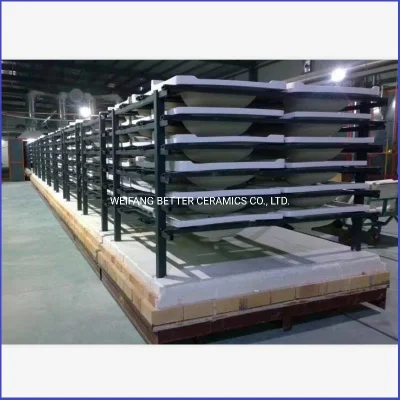

Sisic cross beams are suitable for bearing structure beam in tunnel kiln, shuttle kiln and other industrial furances. It has the advantages of high temperature bearing capacity, good thermal conductivity, long service life, without bending deformation ... advantages. It is an idel kiln for sanitary porcelain and electric porcelain industry.

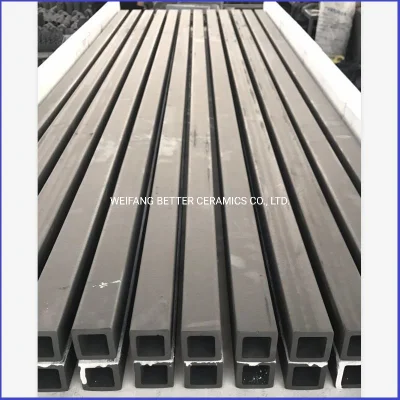

Photos for reference:
| Silicon Carbide Product Specification: | ||
| Item | Unit | RBSIC SISIC |
| Purity | ( % ) | ≥90% |
| Application temperature | ºC | 1380 |
| Density | g/CM2 | ≥3.02 |
| Open porosity | % | ≤0.1 |
| Hardness | 2400 Kg/mm2 | |
| Bending strength | MPa | 250(20ºC) |
| 281(1200ºC) | ||
| Tensile strength | Mpa | ≥190 |
| modulus of elasticity | GPa | 332(20ºC) |
| 300(1200ºC) | ||
| Thermal Conductivity | W/m.k | 45(1200ºC) |
| Coefficient of thermal expansion | K1X 106 | 4.5 |
| Rigidity | Gpa | 13 |
| Acid&Ikali resistance | Excellent | |
Exhibition pictures:
Packaging & Delivery
1. Export safe wooden box
2. Inner boxes with filler.
3. Out package is high quality cartons.
4. Custom package
5. Within 5 days after getting the full payment.
Our company profile:
Weifang Better Ceramics co., LTD is a professional production of Reaction Sintered Silicon Carbide (RBSiC) Or Silincon Infiltrated Silicon Carbide (SiSiC) ceramics enterprises,Our company is located in gaomi city located in the jiaodong peninsula and shandong inland junction,in the west of tourist city of Qingdao, the esst to the world kite city of weifang, the territory of convenient transportation, convenient railway highway from Qingdao airport only 40 minutes, we warmly welcome new and old customers to plant inspection.
BETTER'S RBSiC(SiSiC) products have stable performance and excellent quality, Our company has passed ISO9001 quality system certification. RBSiC(SiSiC) Product has high strength, high hardness, high temperature resistance, wear resistance, corrosion resistance, oxidation resistance, thermal shock resistance, good thermal shock resistance, good thermal conductivity, high thermal efficiency, etc. Our Products are widely applied in power plant desulfurization dust removal equipment, high temperature ceramic kiln, steel quenching furnace, mine material grading cyclone, etc., RBSiC(SiSiC) product categories include Desulfurization spray nozzle, RBSiC(SiSiC) burner nozzles, RBSiC(SiSiC) radiation pipe, RBSiC(SiSiC) heat exchanger, RBSiC(SiSiC) beams, RBSiC(SiSiC) rollers, RBSic(SiSiC) lining ect.
We always believe that high quality products and sincere service is the only guarantee maintain customers long-term cooperation with me.
Our team:
We are a professional team.Our members have many years of silicon carbide technology and research.
We are a young team.We are full of youthful spirit and innovative spirit.
We are a dedicated team.We firmly believe that the best brand name comes from the trust of the customers.Only focus, will make better products.
We are a dream team.We came from different place but as a common dream: to be a really good silicon carbide production manufacturer.
Effective team members for the team to show high levels of loyalty and commitment, intended to allow a group to be successful, we are willing to do anything."We put the loyalty and dedication, called consistent commitment.
FAQ:
Q: Are you trading company or manufacturer ?
A:We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods need production, it is according to quantity.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge but the freight cost is yours.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
