Basic Info.
Model NO.
ep200
Feature
Oil-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant
Tensile Strength
Strong
Structure
Belt Conveyor
Core Components
Polyester Multi-Layer Fabric Core
Material Feature
Heat Resistant
Dimension(L*W*H)
Size Customization
Belt Thickness
3 mm to 40 mm
Edge
Cut Edge and Mold Edge
Transport Package
Poly Bag
Specification
DIN22102/RMA
Trademark
kilomega
Origin
Ningbo, China
HS Code
40101200
Production Capacity
5000meters / Day
Packaging & Delivery
Package Size
100.00cm * 120.00cm * 100.00cm
Package Gross Weight
100.000kg
Product Description
CHEVRON CONVEYOR BELT

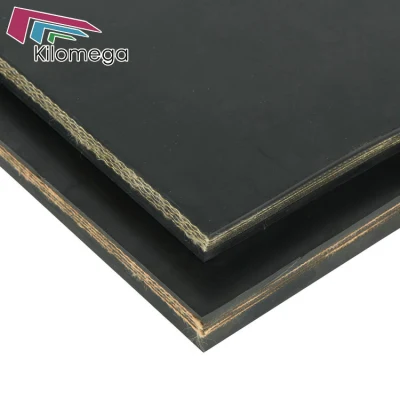

Polyester core conveyer belt is a multi-layer polyester canvas bonded together by a certain way, from top to bottom coverage of high strength, good wear-resistant flexible rubber, no special corrosion for the transmission of small and medium-sized block, powder, granular and other materials.
1.Standards:
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
2.Features:
Good flexibility, groove formation property and cost-effective. It is mainly used to transport powder,small and medium granular or less wearing materials at common temperature.
Good flexibility, groove formation property and cost-effective. It is mainly used to transport powder,small and medium granular or less wearing materials at common temperature.
3.Application:
Applicable to long-distance, high capacity, high-speed delivery of materials under the conditions.
Used in mining, quarries, chemical plants, architectural industry and etc.
| No | Item | Data |
| 1 | Cover Rubber grade | 8MPA,10MPA,12MPA,15MPA 18MPA,20MPA,24MPA,26MPA |
| 2 | Belt width (mm) | 400,500,600.650,700,900,800,1000,1200 1400,1500,1600,1800,2000,2200,2500 |
| 3 | Tensile strength | EP200/2,EP315/2,EP315/3,EP400/3,EP500/3,EP600/3,EP400/4,EP500/4,EP630/4,EP800/4,EP1000/4,EP500/5,EP600/5,EP750/5, EP1000/5,EP1250/5 EP600/6,EP1200/6 |
| 4 | Top+Bottom thickness | 3+1.5, 4+2, 4+1.5, 4+3, 5+1.5, 6+2, 7+2, 8+2 |
| 5 | Belt thickness | 4mm-25mm |
| 6 | Belt length | 50m, 100m, 200m, 250m, 300m |
| 7 | Belt edge type | moulded(rubbered) edge or cut edge |
| Fabric specs | Ply thickness (mm/p) | Strength series (N/mm) | Cover Thickness (mm) | Width | Length | |||||
| 2ply | 3ply | 4ply | 5ply | 6ply | Top | Bottom | mm | m | ||
| EP80 | 0.60 | 160 | 240 | 320 | 400 | 480 | 2.0--8 | 0--4.5 | 400-2500 | ≤300 |
| EP100 | 0.75 | 200 | 300 | 400 | 500 | 600 | ||||
| EP150 | 1.00 | 300 | 450 | 600 | 750 | 900 | ||||
| EP200 | 1.10 | 400 | 600 | 800 | 1000 | 1200 | 500 -- 2500 | |||
| EP250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | ||||
| EP300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | ||||
| EP350 | 1.45 | 1050 | 1400 | 1750 | 2100 | 800 -- 2500 | ||||
| EP400 | 1.55 | 1600 | 2000 | 2400 | 1000 -- 2500 | |||||
| EP500 | 1.70 | 2000 | 2500 | 3000 | ||||||
1. Rubber mix process
2. Calender process
3. Forming process
4. Vulcanizing process
5. Finish products
We have special QC department to inpect all the conveyor belt before shipment.
1. Surface Inspection
1.1 Width measurement
1.2 Length measurement
1.3 Thickness measurement
1.4 Surface inspection
2. Lab Inspection
2.1 Adhesion strength test
2.2 Tensile strength test
2.3 Abrasion test
2.4 Elongation test
2.5 Especial test according to customer's requirements
Yes, we produce Rubber conveyor belts and conveyor rollers over 20 years.
Q2. What is the lead time?
10 days for bulk order production.
30 days for container order production.
30 days for container order production.
Q3. How to pay?
1. T/T or L/C through bank account
1. T/T or L/C through bank account
Q4. How about package?
1. Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2. Outer is packed with one ply water-proof PP fabric
1. Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2. Outer is packed with one ply water-proof PP fabric
3. With steel pallet on the bottom
