Product Description

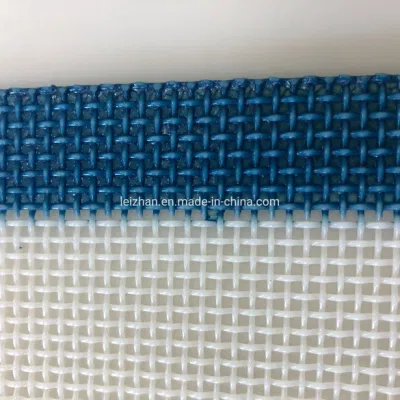

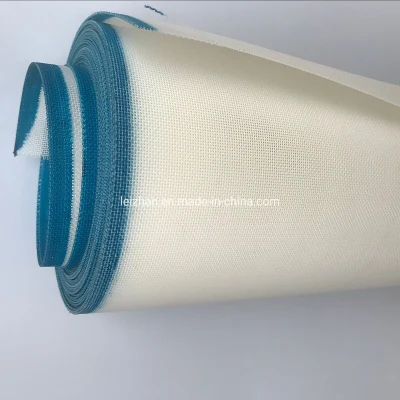

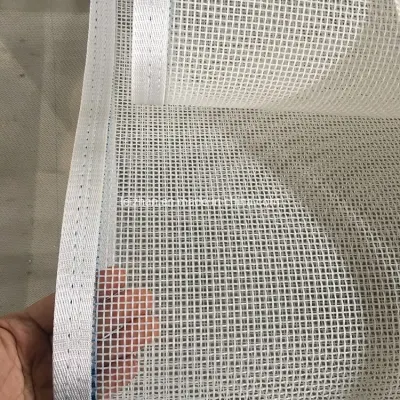

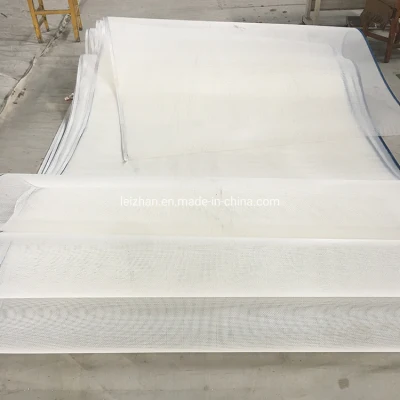

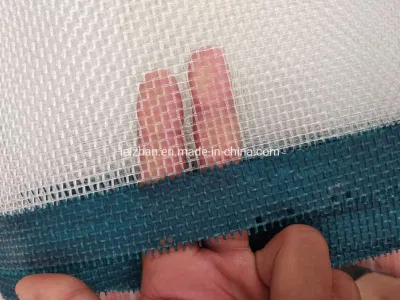

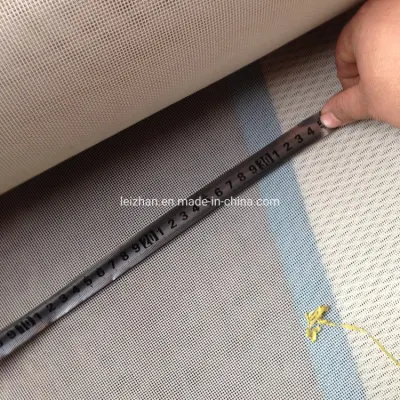

*Plain Weave Fabric
Square hole net mainly has two comprehensive, three comprehensive flat woven net series products are mainly used in mineral screening industry, paper pulp board net, kraft pulp packaging paper, veneer board net, fiberboard factory net and other special industries.
Our materials are divided into ordinary material, hydrolysis resistant material, high hydrolysis resistant material and high temperature resistant material.
Only few types are shown here, p lease provide your specific use environment before placing an order, and our customer service staff will recommend the suitable model to you.Code | Filament Diameter mm | Density root/cm | Mesh mm | Aperture mm | Thickness mm | Air permeability (m³/m²h) | CFM | ||||
warp | weft | warp | weft | warp | weft | warp | weft | ||||
021002 blue | 1.0 | 1.0 | 2.85 | 2.65 | 7.10 | 6.73 | 2.50 | 2.77 | 1.85 | 32000 | 2000 |
031002 blue/white | 1.0 | 1.0 | 3.2 | 3.25 | 8.10 | 8.20 | 2.12 | 2.07 | 1.86 | 25600 | 1600 |
03902 | 0.9 | 0.90 | 3.9 | 3.65 | 9.6 | 9.30 | 1.66 | 1.83 | 1.70 | 20000 | 1250 |
04902 | 0.9 | 0.9 | 4.65 | 4.7 | 12 | 12 | 1.25 | 1.22 | 1.66 | 17600 | 1170 |
06802 blue/white | 0.80 | 0.80 | 6.6 | 6.5 | 16.8 | 16.5 | 0.72 | 0.73 | 1.45 | 11600 | 1190 |
06702 blue/white | 0.70 | 0.70 | 7 | 7 | 17.8 | 17.8 | 0.72 | 0.72 | 1.30 | 11000 | 725 |
07802 | 0.80 | 0.80 | 7.8 | 7 | 20.3 | 18 | 0.32 | 0.54 | 1.45 | 5920 | 370 |
12502 | 0.50 | 0.50 | 13.5 | 8.5 | 25 | 26.2 | 0.53 | 0.47 | 0.95 | 10100 | 634 |
09452 | 0.45 | 0.45 | 10 | 8.6 | 25.4 | 21.8 | 0.55 | 0.71 | 0.88 | 15570 | 970 |
We are a China industrial felt and fabric manufacturer located at Jiangsu province,Xuzhou city. With advantage technology and excellent produce equipment,we provide one-stop service from consultation,process design and optimization , manufacture ,installation , commissioning and personnel training and so on.At the meantime,we can custom design according to customers' requirements. Through our professional analysis, we can reduce customers' costs, enhance their competitiveness, and provide customers with one-stop industrial fabric solutions.
