Basic Info.
Model NO.
LBP882TAB
Backflex Radius(Min)
400mm
Plate Thickness
4.8mm
Working Load(Max.)
3830n
Application
Beverage/Food Processing/Packing
Pin
Stainless Steel
Chain Type
Roller Chain
Transport Package
by Cartons
Specification
ISO9001
Trademark
Tuoxin
Origin
Jiangsu Nantong
HS Code
3926901000
Production Capacity
3000 Meters/Month
Product Description

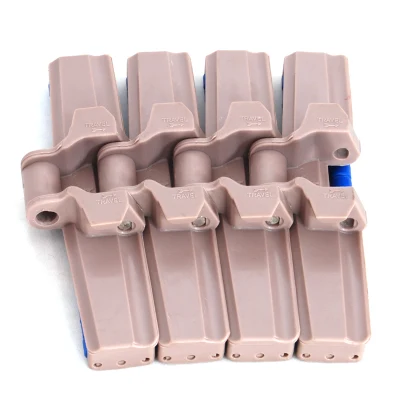

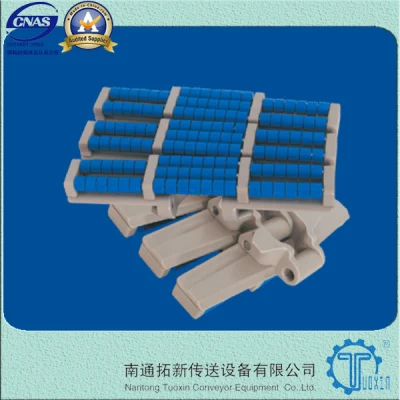

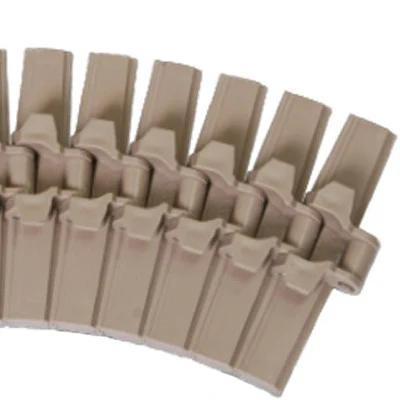

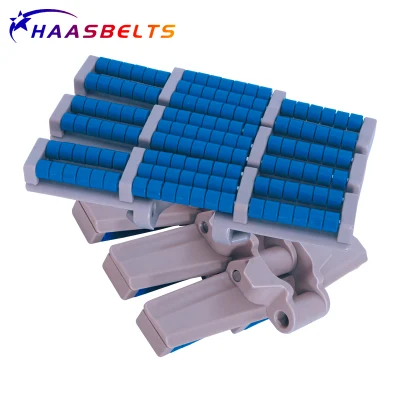

LBP882TAB Side Flexing Heavy Duty Plastic Roller Chain
LBP Roller Chain
1. Pin: Stainless steel
2. Standard Length: 1.524 m=5 feet (40 links)
3. The longest distance=12 M

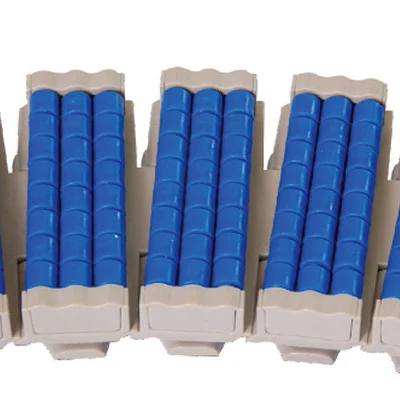

This plastic LBP chain is the solution to the pressure created between products and the conveying surface created by the accumulation of product. This is achieved by having a series of small width rollers which provides a stable conveying surface and enables the product to be handled without damage, however the chain still provides a positive forward motion.
Benefits:
1. High ultimate load
2. Rollers manufacture in low friction and low noise material: Reduced pack-line pressure and low noise level.
LBP Roller Chain
1. Pin: Stainless steel
2. Standard Length: 1.524 m=5 feet (40 links)
3. The longest distance=12 M
This plastic LBP chain is the solution to the pressure created between products and the conveying surface created by the accumulation of product. This is achieved by having a series of small width rollers which provides a stable conveying surface and enables the product to be handled without damage, however the chain still provides a positive forward motion.
Benefits:
1. High ultimate load
2. Rollers manufacture in low friction and low noise material: Reduced pack-line pressure and low noise level.
| Chain Type | Plate Width | Weight | Sideflex radius(min.) | Working Load(max) | Backflex radius(min) | Plate thickness |
| mm | kg/m | mm | N(21ºC) | mm | mm | |
| LBP882TAB-K750 | 190.5 | 4.5 | 610 | 3830 | 400 | 4.8 |
| LBP882TAB-K1000 | 254.0 | 5.71 | ||||
| LBP882TAB-K1200 | 304.8 | 6.38 | 680 |
